Guide — Before You Start
The basics you need before tuning — whether you're taking the course or ordering a remote tune.
Using HPTuners for the first time
Check the car's condition first
Before tuning, make sure the car is mechanically sound. Key checks:
• No misfire — confirm fuel delivery and spark are working correctly
• No intake manifold gasket leaks
• Healthy fuel pump
• Whether a MAF translator is present or not
• Whether an EVAP-delete is present or not
• Whether O2/exhaust sensors are present and working
• Healthy knock sensors
• Any modifications already done to the engine
• Tire size changes from stock
• Gear/differential (Ring and Pinion) ratio changes
Identify your car's ECU name and type
Before starting any tuning, identify which ECU is installed in your car — Gen 3 (P01/P59), Gen 4 (E38/E67), or Gen 5 (E92/E92A). This determines which steps and lessons apply to you.
Setting the right air/fuel ratio (AFR) targets
The ideal air/fuel ratio at idle and partial throttle is 14.7.
Going leaner than 14.7 (e.g. 15–16+) means less fuel in the mix.
Going richer than 14.7 (e.g. 13–14 or lower) means more fuel in the mix.
At wide-open throttle (WOT), target ~12.5 — the extra fuel acts as cooling and can support more torque.
For track cars under sustained WOT, target ~12 for extra cooling.
Setting up scanner files
Instead of building VCM Scanner channel layouts from scratch, we provide a ready-made channels/tables file covering the key channels you need while logging (VE, MAF, timing, AFR, and more).
Wiring a wideband O2 sensor to the scanner
How you wire a wideband depends on the connection method available. In this example, the sensor used is an AEM 30-0300, which supports both Serial and Analog connection methods.

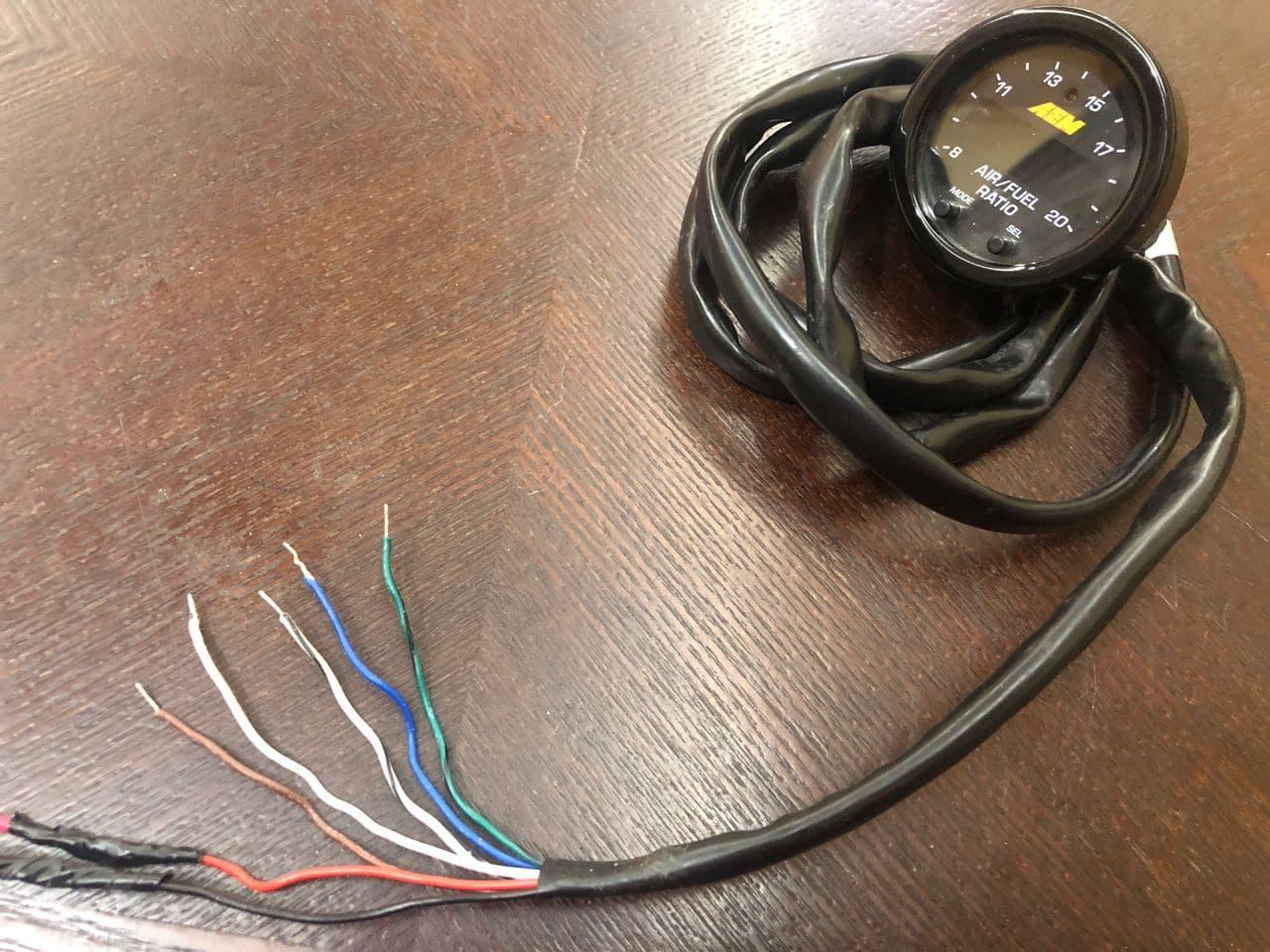

The photo shows 7 wires coming off the gauge:
• Red → hot power source "+" or the cigarette lighter
• Black → cold/ground power source "-" or the cigarette lighter
• Blue → pin 2 on the serial adapter (serial method)
• Brown (analog negative) → paired with black on Pro Link (analog/Pro method)
• White (analog positive) → paired with blue on Pro Link (analog/Pro method)
Serial connection method

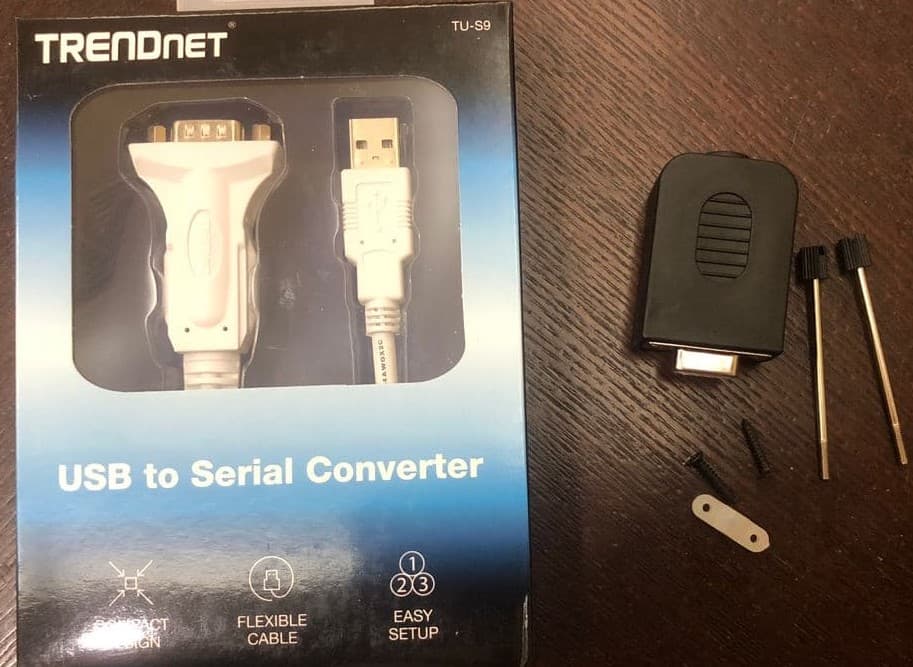

Needed: a USB serial adapter with a wire-connection converter, plus the wideband.

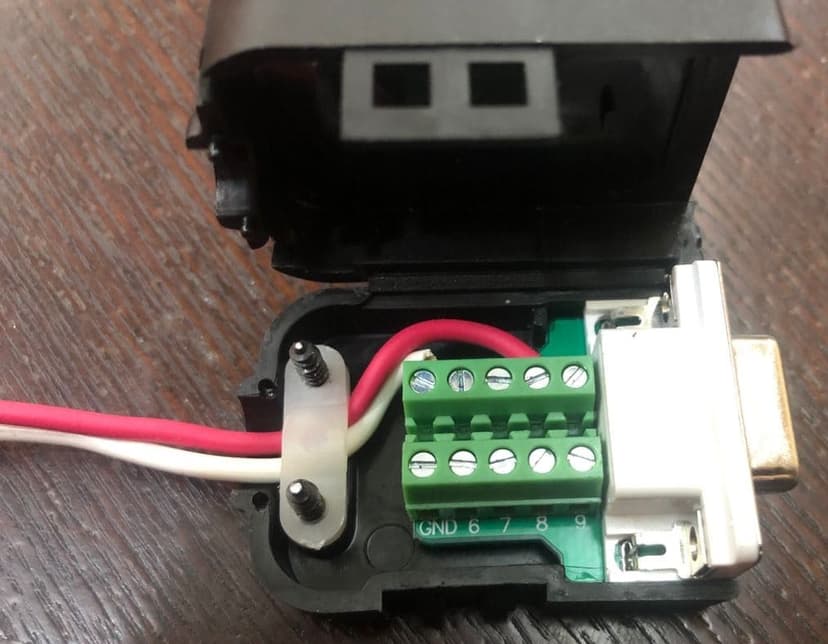

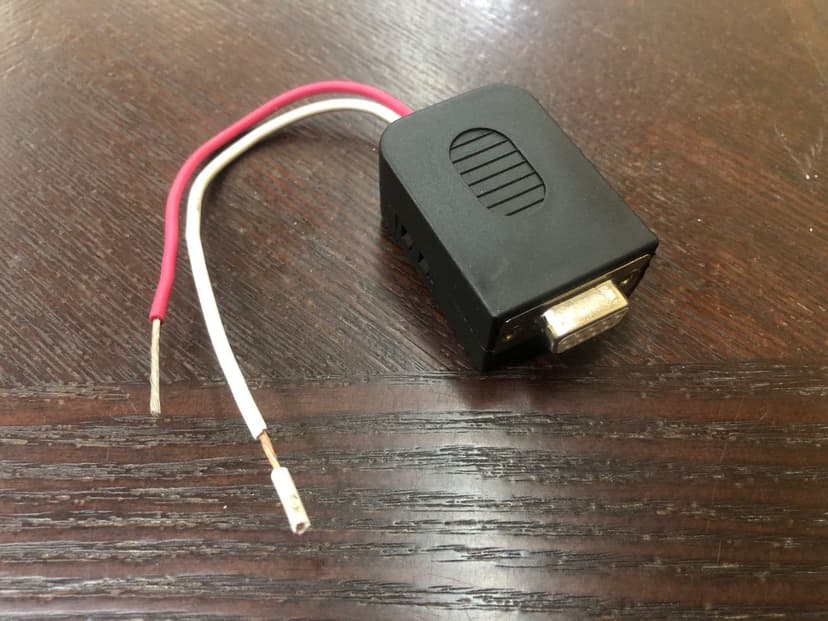

Wire the converter at pins 2 and 5, as shown in the photos.

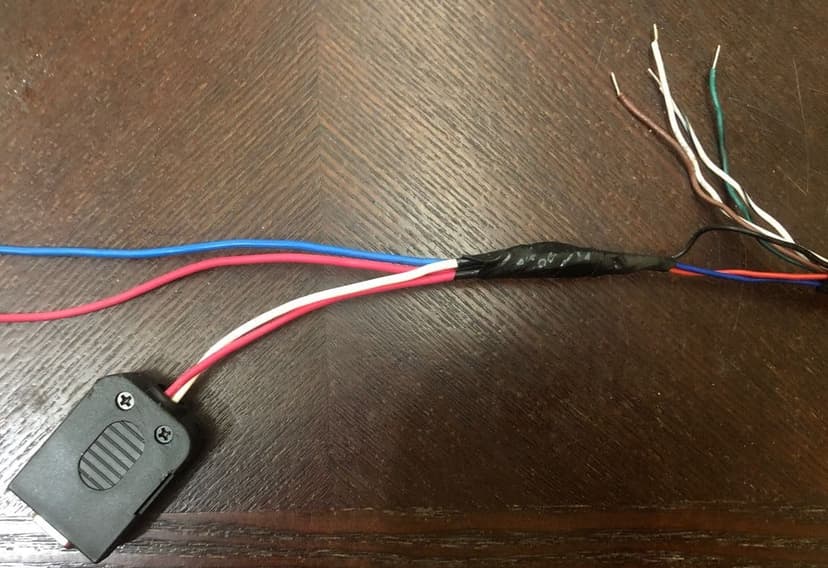

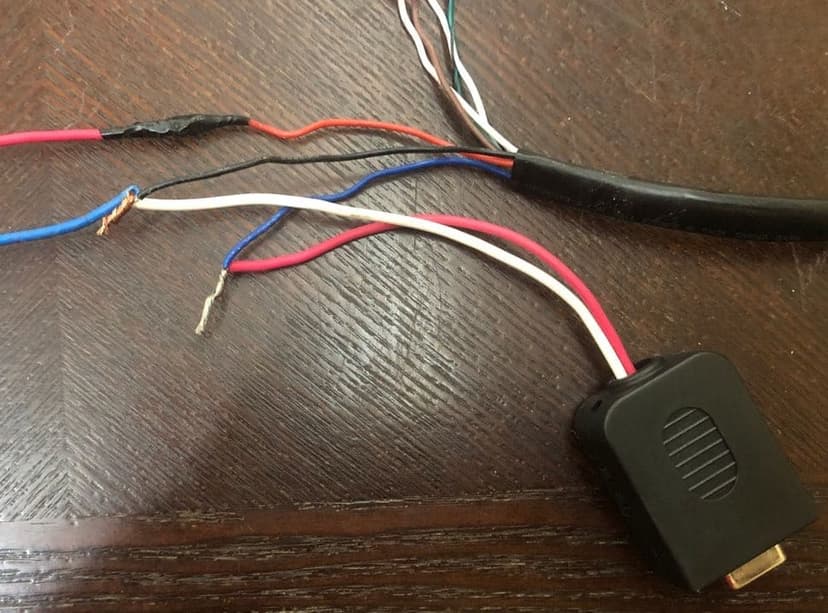

Pin 2 connects to the wideband's blue wire, pin 5 to its black wire, as shown in the photos.
Solder with heat-shrink insulation for a permanent install.

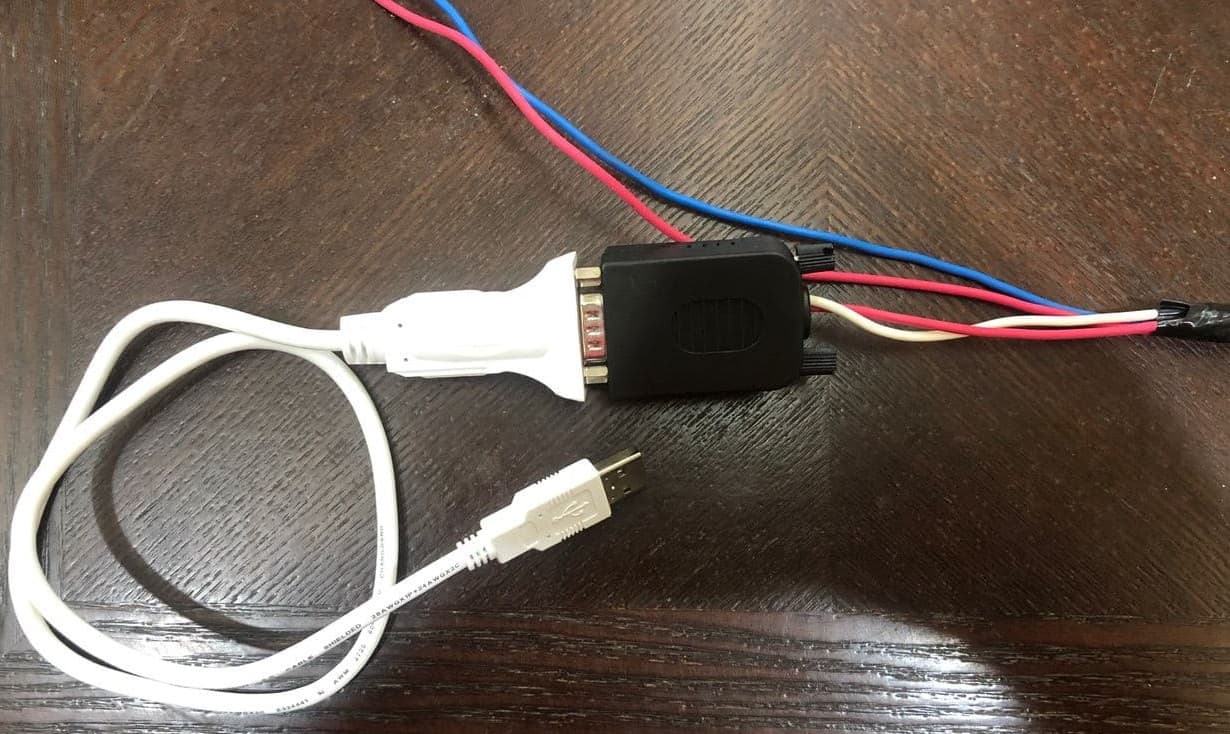

The final result after wiring
Important: connect the red and black wires to a power source — either permanently on the car itself, or temporarily via the cigarette lighter.
Plug the serial adapter into the laptop while online — it's auto-detected; install drivers from the included CD if your OS predates Windows 10.

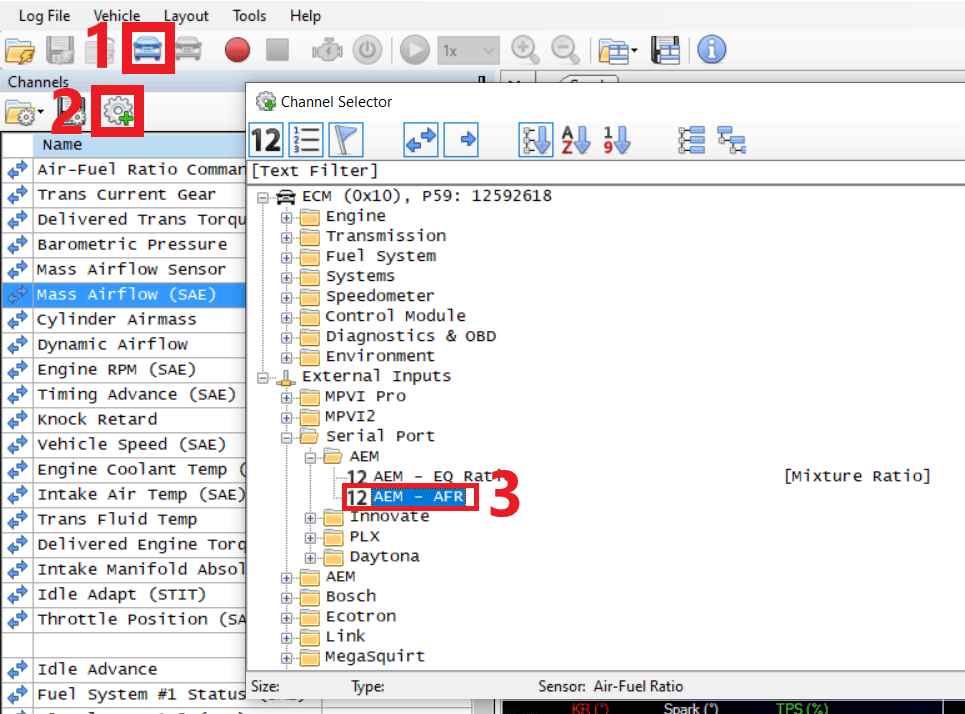

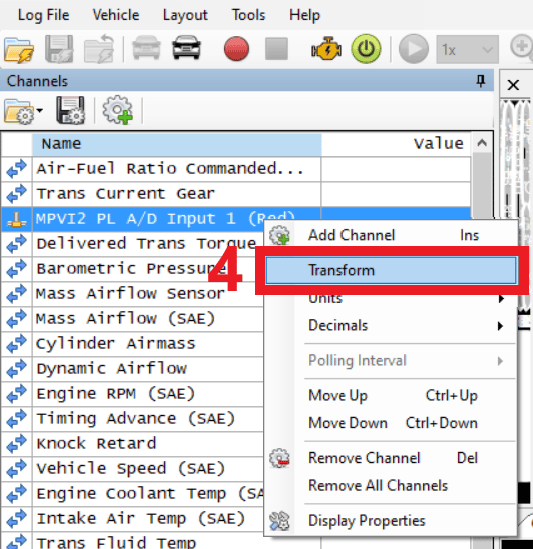

Then follow these steps in the scanner:

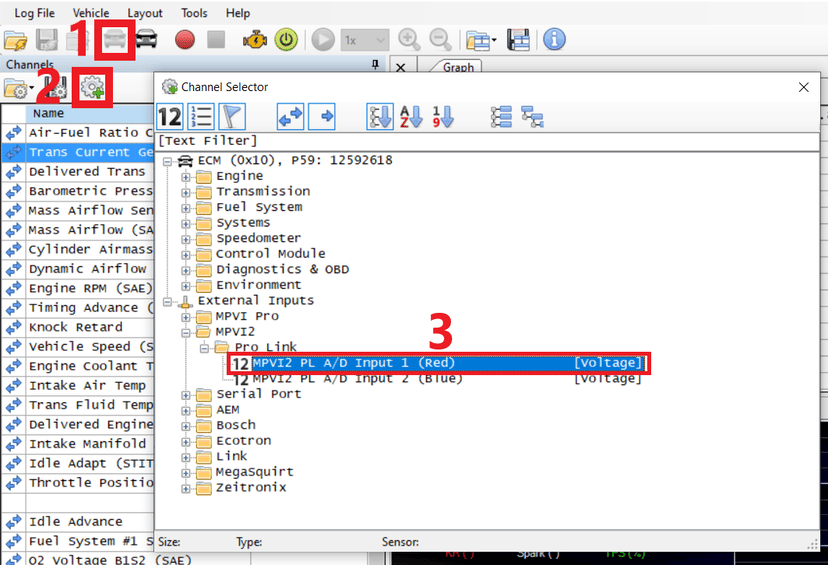

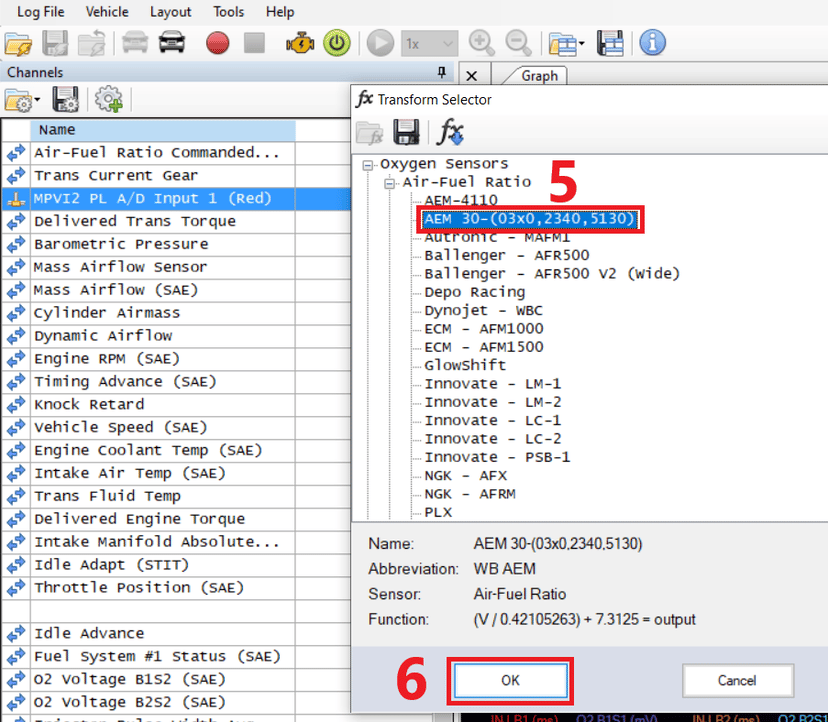

Analog / Pro Link connection method

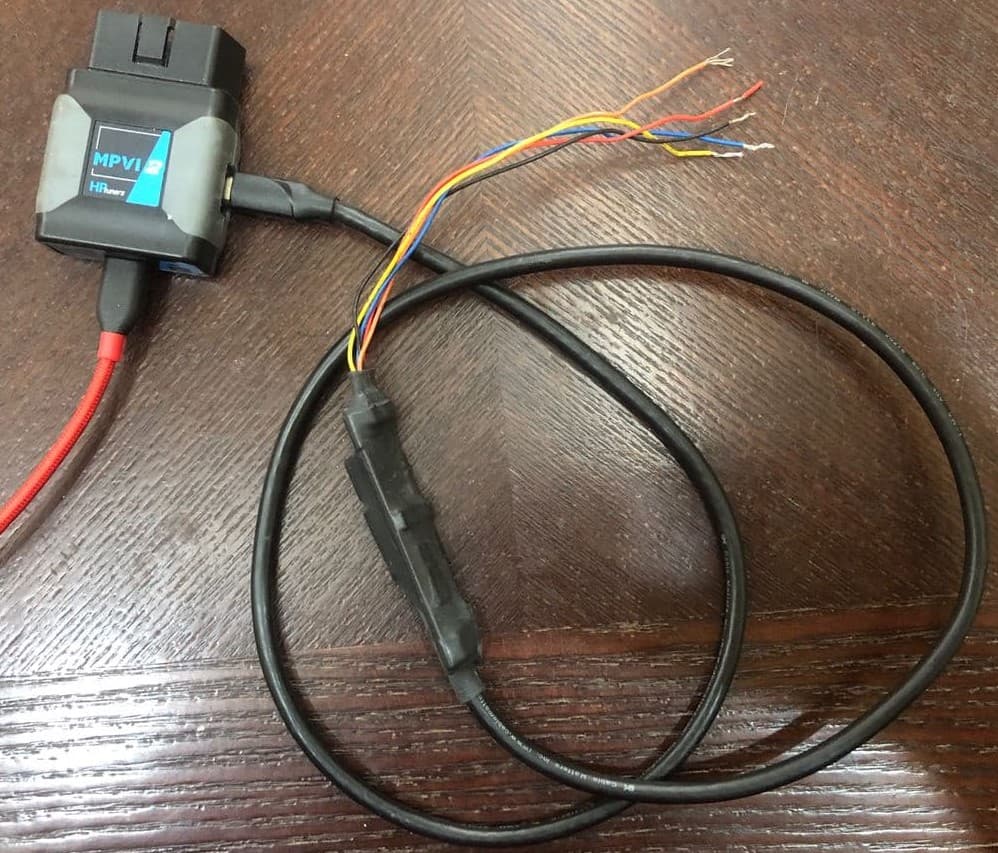

Needed: an HPTuners Pro package (includes a free Pro Link cable) plus the wideband.

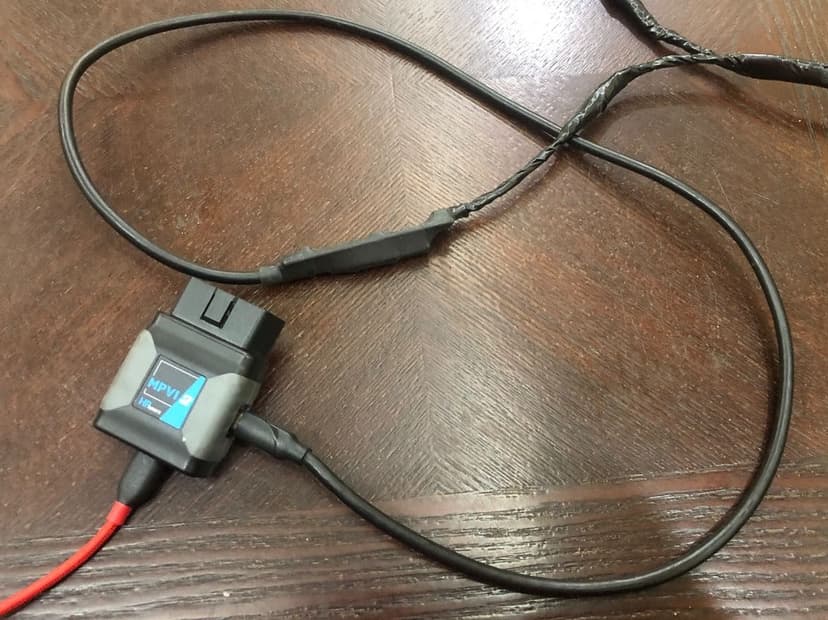

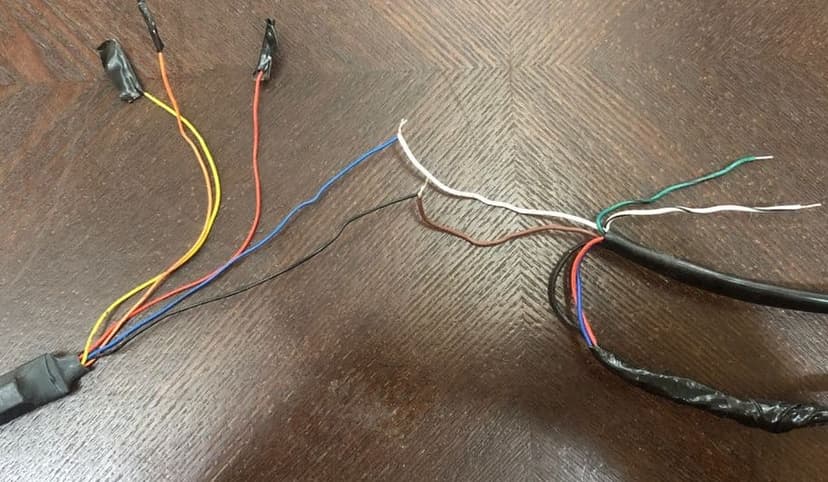

Pro Link's blue wire connects to the wideband's white wire; Pro Link's black wire connects to the wideband's brown wire, as shown in the photos.
